Gabions
Material
1)Hot dip galvanized wire
Heavy zinc-coated wire(EN10244-2 240g/)
2)Pvc coated wire(Pvc thickness:0.38-0.5mm)
3)Galfan wire
1. opening size of mesh:6*8, 8*10
2.wire diameter of the gabions: 2.2mm, 2.7mm
3.zinc coating amount:40-50g/m2, 275g/m
Mesh Type: Double twisted hexagonal
Mesh size: 5x7cm,6x8cm,8x10cm,8x12cm,10x12cm etc.
Gabion size: can be design as per the clients' requirement.
(The normal size:1.5x1x1m,2x1x1m,3x1x1m,2x1x0.5m,4x1x1m,3x2x0.23m,4x2x0.23m)
Certification:ISO9001:2000
Gabion is used as gabion box(gabion basket), gabion mattress or gabion mesh. To fill with stones at the river bank or seaside to stop flood, on the mountain prevent rock falling. Diamond brand gabion has a over 20-year experience on gabion, with good reputation and guarantee on quality, delivery and service. We mainly export gabions to Western Europe, Mid-South America, Southeast Asia, and etc..

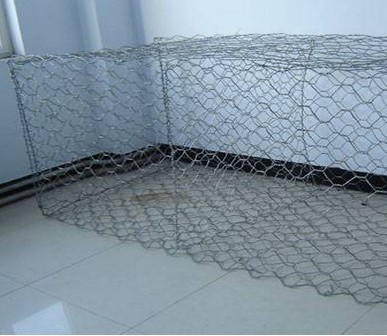

DESCRIPTION OF GABION: Gabion is basket or mesh roll made of twisted hexagonal wire Mesh(80X100 APERTURE). Gabion box is filled with rock at the project site to form flexible, permeable, monolithic structures such as retaining walls, channel linings and weirs for erosion control projects. |
Hexagonal Wire Netting Gabions |
|||
Opening |
Wire Diameter(Metal Wire) |
Wire Diameter (PVC Coate)/ |
Strands |
60X80 |
f2.0-2.8 |
f2.0/3.0-2.5/3.5 |
3 |
80X100 |
f2.0-3.2 |
f2.0/3.0-2.8/3.8 |
3 |
80X120 |
f2.0-3.2 |
f2.0/3.0-2.8/3.8 |
3 |
100X120 |
f2.0-3.4 |
f2.0/3.0-2.8/3.8 |
3 |
100X150 |
f2.0-3.4 |
f2.0/3.0-2.8/3.8 |
3 |
120X150 |
f2.0-4.0 |
f2.0/3.0-3.0/4.0 |
3 |
