Europe Style Fence-Palisade
Corrugated Pale, or Palisade fencing presents a formidable barrier and is often specified where there is a need for high security.
PALISADE FENCE SERIES
The forbidding appearance and inherent strength of the pales provide an effective deterrent to would be intruders. It is available in a choice of head styles, both in the traditional 'D' pale profile, and 'W' section pale for added security.
Palisade is offered in a range of heights up to 3.6 metres, and is self-adjusting to slopes of up to 1 in 3. It can be supplied assembled in panels, or bundled for site assembly along with either bolts or rivets.
Palisade is available in a range of finishes, galvanised in, or galvanised and colour coated in various colours to blend with the environment.
Construction

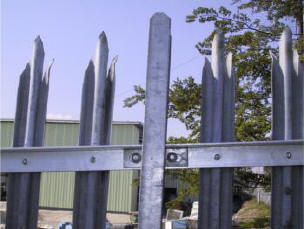

A standard panel is constructed from hot and cold rolled steel sections supplied for assembly on site. Panels consist of 17 vertical pales manufactured in "D" or "W" profile with a choice of tops. The pales are fixed to rolled steel angle horizontals which are supported by 100 x 55 joist posts.
 |
|
position. The pales are connected to the horizontals to form the panel and are held securely together by utilising vandal resistant security fasteners.

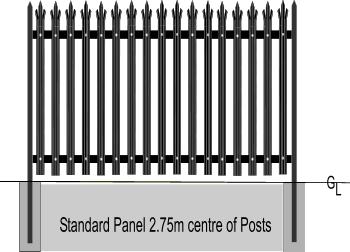

Fencing is supplied in 2.75m wide standard panels for easy assembly on site.
Special panels and posts to step or rake can be supplied if required.
Non standard posts for cranking over walls, or base plated for fixing to concrete are also_available.
From the fierce Triple pointed top to the Round head, each top complements a particular requirement to meet a perceived level of security risk.

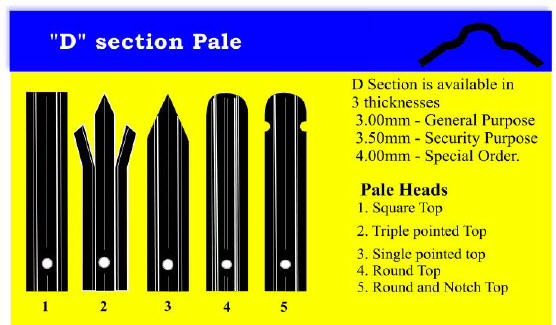

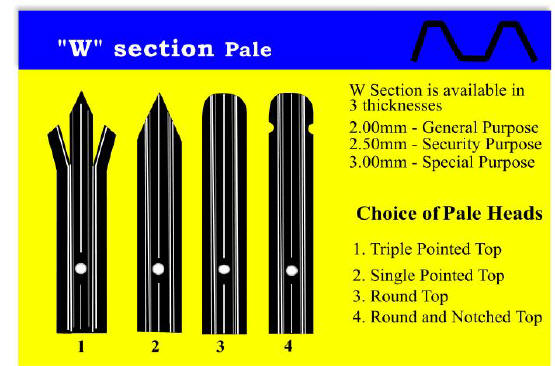

A choice of "D" or "W" section is offered with a variety of heads and thicknesses chosen by the risk assessment for a particular site.
STANDARD HEIGHT |
PALE SECTION |
HEAD PROFILE |
1.2M |
3.0MM"D" |
ROUNDED & NOTCHED |
1.5M |
3.0MM"D" |
ROUNDED & NOTCHED |
1.8M |
3.0MM"D" |
ROUNDED & NOTCHED |
1.8M |
3.0MM"D" |
TRIPLE POINTED |
1.8M |
2.0MM"W" |
TRIPLE POINTED |
2.0M |
2.0MM"D" |
ROUNDED & NOTCHED |
2.0M |
3.0MM"D" |
TRIPLE POINTED |
2.0M |
2.0MM"W" |
TRIPLE POINTED |
2.1M |
3.0MM"D" |
TRIPLE POINTED |
2.1M |
2.0MM"W" |
TRIPLE POINTED |
2.4M |
2.0MM"D" |
TRIPLE POINTED |
2.4M |
3.0MM"D" |
ROUNDED & NOTCHED |
2.4M |
2.0MM"W" |
TRIPLE POINTED |
2.4M |
2.5MM"W" |
TRIPLE POINTED |
3.0M |
3.0MM"D" |
TRIPLE
POINTED |
 |
 |
 |
 |
 |
 |
